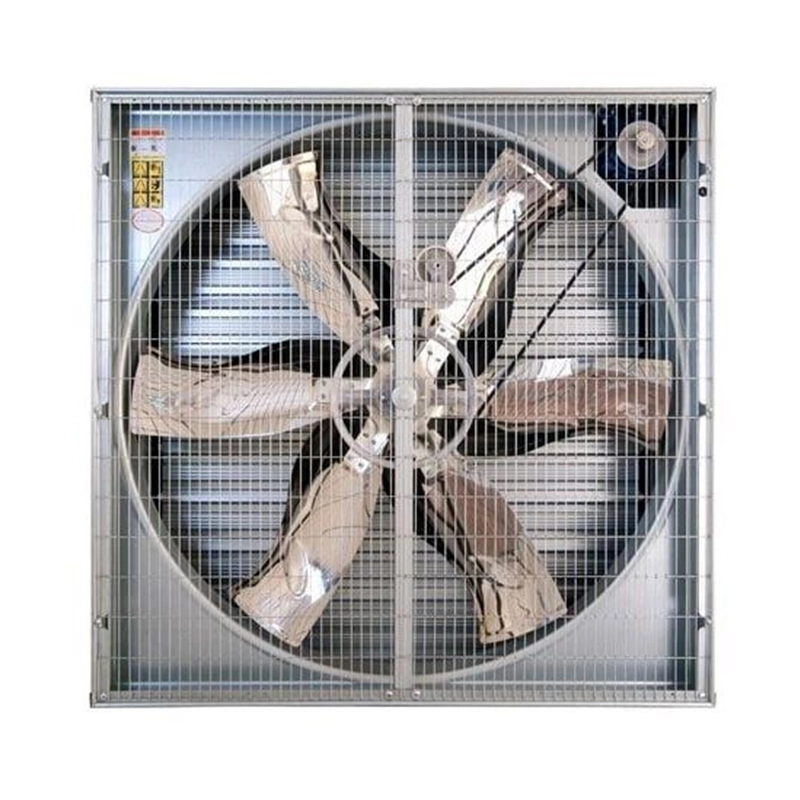

Poultry house greenhouse exhaust fan push-pull 50 inch 36 inch environment control equipment
Negative pressure fan is widely used in animal houses and greenhouses for ventilation. In closed house, ventilation for animals and plants is very important. In some hot areas or starter farms, it always happens that piles of chicken died from high temperature or infectious diseases in short time.
Ranchero negative pressure fan can help you finish ventilation within 1 minute. Please contact us with the basic information of your house, so that we calculate the suitable scheme accordingly.
Product Description
● Hot-dipped galvanized sheet , 275g/㎡ galvanized , anti- rust.
● Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
● Wall-Mounting fan , easy installation and maintenance
● Belt Drive, Big airflow
● Blades Material : 430 stainless steel, thickness 1.2mm
Diameter: 1270mm, Large air flow, no deformation, no fracture, no dust, attractive and durable.
Motor Protection Grade: IP55
Isulation Class: F grade
Product Parameter
|
push-pull Negative pressure fan |
|
performance feature: |
|
1. Shutters open system:Unique push-pull centrifugal system to ensure the shutters open and close smoothly. |
|
2. Fan frame:Made of high quality galvanized sheet or stainless steel sheet in order to assure the highest strength and resistance to corrosion. |
|
3. Blades:6 pieces of stainless steel blades and the fan has passed the experiment of homeostasis,large air flow, low noise, no distortion and on blending. |
|
4. Bearing:High speed bearing,high strength,low noise and long service life. |
|
5. Blade pulley:The V-belt pulley is molded by aluminum magnesium alloy injection,light weight,high strength. |
|
Technicial Data |
|||||||
|
Model |
Drive |
Blades Diameter (mm) |
Blades Rotational Speed(rpm) |
Motor Rotational Speed(rpm) |
Air Flow (m³/h) |
Input Power (W) |
Noise (db) |
|
WH-1000 |
Belt |
910(36in) |
500 |
1400 |
28000 |
550 |
<64 |
|
WH-1100 |
Belt |
1000(40in) |
470 |
1400 |
36000 |
750 |
<64 |
|
WH-1380 |
Belt |
1270(50in) |
458 |
1400 |
51020 |
1100 |
<64 |
From design planning, installation and commissioning to post-training, we provide a full range of one-stop services, freeing customers from the tedious breeding preparations and focusing on the breeding itself.
